2. First-Time Setup: Charging Your Scanner

3. Wearing & Basic Operation

Proper Fitting

• Wear device on your index finger (either hand works)
• Select the correct ring strap size from the 5 included options
• Scanner should feel secure but not tight

How to Scan

• Press either side of the scanner with your thumb or third figure to trigger a scan
• Hold steady until you hear the beep confirmation
• Vibration feedback confirms successful scan

4. Pairing Your Scanner

• Common Mode (Default - for PC/Windows)

• iOS Mode (Apple devices)

• Android Mode (Android phones/tablets)

• Windows Mobile Mode (Windows Mobile devices)

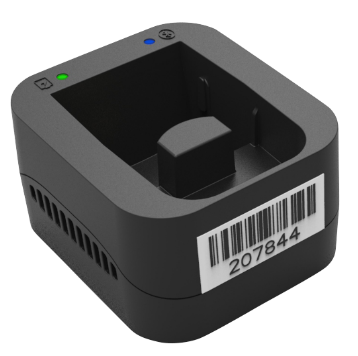

Method A: Pairing with PC (via Cradle)

1. Plug the cradle into your PC's USB port
2. Wait 15 seconds until the cradle's green light activates
3. Scan the "Bluetooth Connection" barcode (printed on the cradle)
4. Blue light = Successful pairing complete


 Note: The cradle serves as the Bluetooth central device, while the ring scanner functions as the peripheral device.

Method B: Direct Pairing with Phone/Tablet

1. Enable bluetooth in your device settings
2. Search for devices and select your scanner's bluetooth name (default: serial number)
3. Green light = Successfully connected


LED Pairing Status

• 🔵 Blinking Blue = Pairing in progress
• 🔵 Solid Blue = Bluetooth connected
• 🟢 Solid Green = Connected and ready to scan


5. LED Status Indicator Reference

6. Model Specifications & Capabilities

7. Troubleshooting Common Issues

Connection Issues

Problem:  Bluetooth won't connect

Solution:

1. Scan "Reset Bluetooth Name" barcode

2. Wait 10 seconds

3. Re-pair following steps above

Problem:  Paired to wrong device

Solution:

1. Perform factory reset

2. Re pair with correct device

Problem:  Connection drops frequently

Solution:

1. Check battery level

2. Ensure device is within 30 feet

Scanning Issues

Problem:  Scanner not reading barcodes

Solution:

1. Check battery charge

2. Clean scan window with soft cloth

3. Ensure barcode is clear and undamaged

Problem:  Slow or inconsistent scanning

Solution:

1. Clean scan window

2. Ensure proper lighting

3. Check barcode quality

4. Scan "Speed Down Data Transmission" barcode

Problem:  Won't scan certain barcode types

Solution:

1. Scan “Default Extended Setting” barcode

 2. Contact support for assistance

Power & Hardware Issues

Problem:  Won't charge

Solution:

1. Check charging contacts alignment

2. Try different USB port/cable

3. Clean charging contacts with dry cloth

Problem:  Won't wake from cradle

Solution:

Tap the scanner 3 times to wake from sleep mode

Problem:  Battery drains quickly

Solution:

1. Perform full charge cycle

2. Check for background connections

3. Contact support if under 8 hours usage

8. Reset & Recovery Options

Soft Reset (Bluetooth Only)

• Scan "Reset Bluetooth Name" barcode → Wait 10 seconds → Reconnect
• Use when experiencing connection issues

Factory Reset (Complete Restore)

• Scan "Restore Factory Settings" barcode → All devices disconnect, settings return to default
• Use when switching primary devices or major configuration issues

Speed Optimization

• Scan "Speed Up Data Transmission" barcode → Improves data transfer speed
• Use if experiencing slow response times

9. Maintenance & Best Practices

Daily Care

• Keep scan window clean wipe with soft, dry cloth
• Charge overnight for consistent full day operation
• Store in cradle when not in use to maintain charge

Battery Optimization

• Full charge before first use (2.5 hours initial charge)
• Avoid complete discharge charge when red light appears
• Expected battery life: 12+ hours normal use

Comfort & Fit

• Use correct ring size should be snug but not tight
• Replace ring straps when worn or damaged


10. Technical Support
