C20 Smart Charger

for W2X Hyco Ring Scanners

  • Accommodates up to 10 ring scanners simultaneously
  • Intelligent design securely holds ring scanners in place during charging
  • Indicator lights at each charging slot for easy monitoring
  • Allows users to track the charging status of each individual ring scanner
- 1-Year Standard Warranty

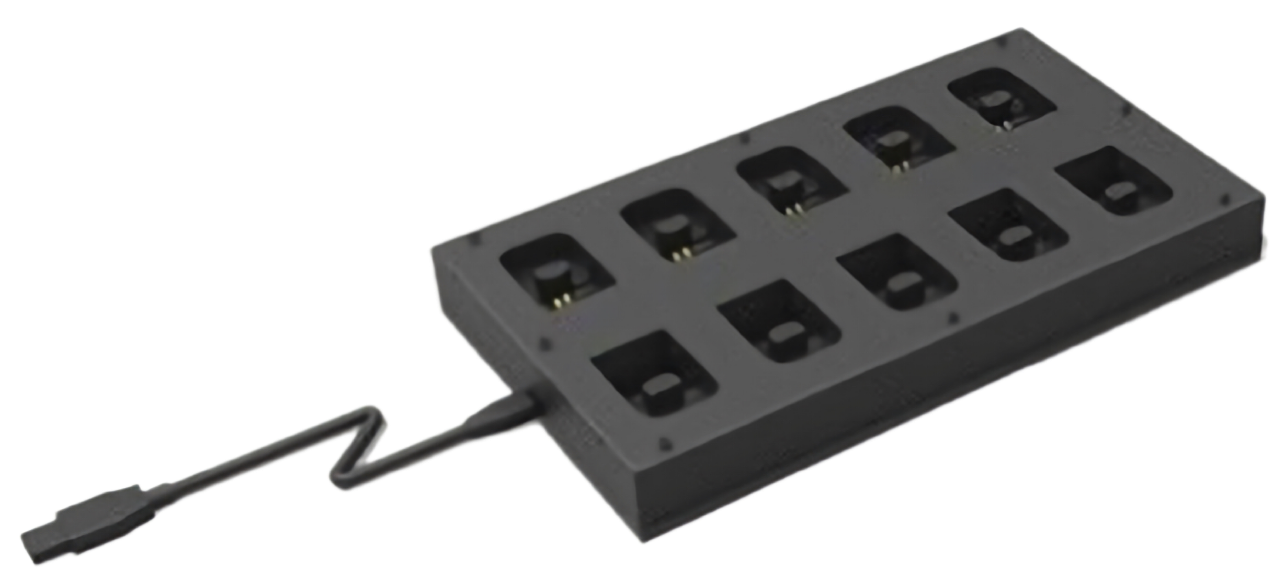

A black power strip with a cord attached to it

How to Charge

  1. Connect the adapter to the C20 charger and then plug the adapter into a power source.
  2. When not in use, the indicator light on the charger remains green.
  3. Place the ring scanner into the bottom of each charging slot with the scanning window facing upward.
  4. Ensure the power contacts between the ring and the cradle are in contact, and push the ring strap to the end of the slot.
  5. When the indicator light turns red, it indicates that the W2X ring scanner is charging.
  6. When the indicator light turns green, it signifies that the charging process is complete.
  7. To disconnect the Bluetooth connection, please scan the barcode located in the middle of the charger.


Notice:

  1. Before use, ensure the safety of the ground connection.
  2. Avoid spraying any liquids onto the charger.
  3. If the charger will not be used, please disconnect the power adapter.

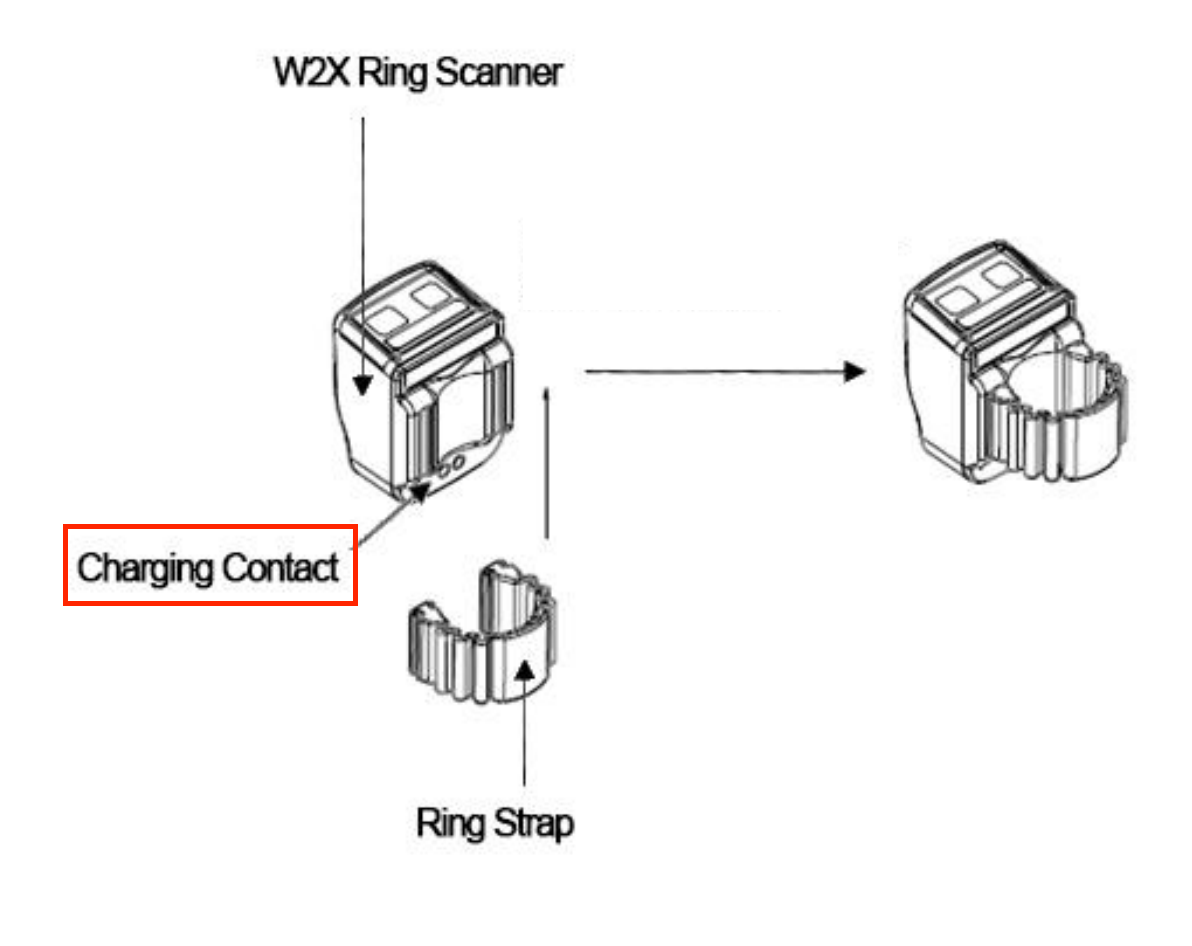

A drawing of a ring scanner with a charging contact and a ring strap.

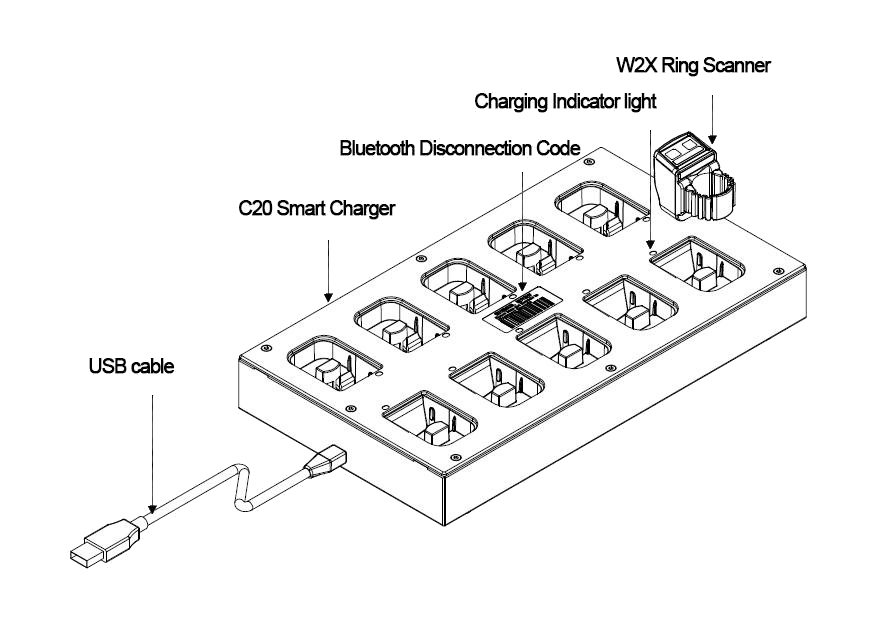

A diagram of a smart charger with a usb cable attached to it.

Specification

Model C20
Weight 1.02KG
Dimensions (W*D*H) 266.5mm*151.4mm*36.7mm
Input 5V@2A
Output 4.2V@1.5A (4.2V@0.15A per slot)
Charging indicator light Red & Green
Number of Charging Cradles 10
Charging Port Micro USB
Operating Temperature -10℃ to 50℃ (14℉ to 122℉)
Humidity 0%-95%RH (non condensing)
